미니 게시판 프로젝트

생성일

2024/08/07 07:42

태그

개인 프로젝트

프로젝트 주제

프로젝트 구조

사용 기술 스택

프로젝트 기능

도메인 생성

프로젝트 주제

•

JSP를 활용하여 누구나 이용 가능한 게시판 개발

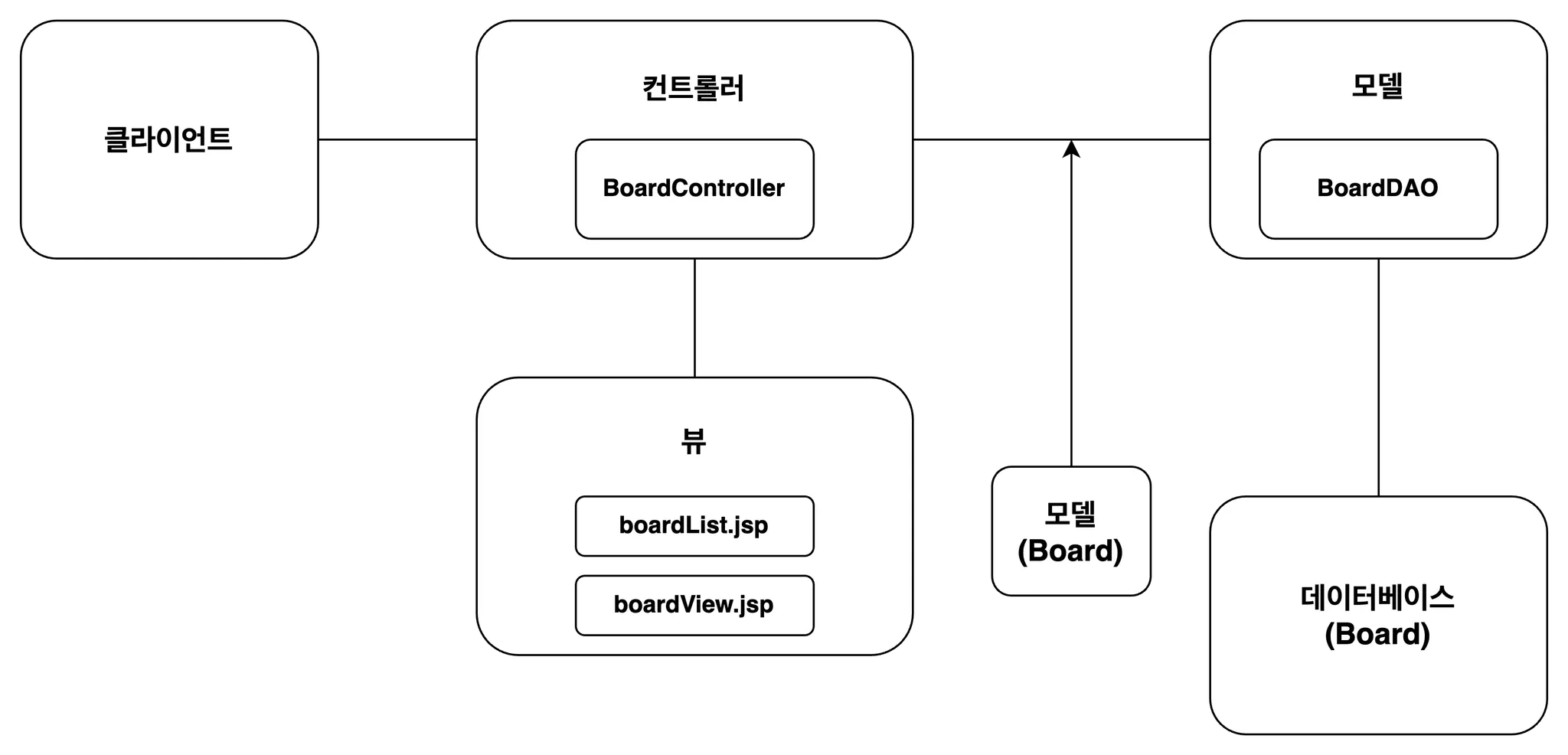

프로젝트 구조

ERD

Table

Search

이름

type

null 여부

primary key 여부

INT

N

Y

VARCHAR(255)

N

VARCHAR(255)

N

VARCHAR(255)

N

VARCHAR(255)

N

DATETIME

N

DATETIME

Y

사용 기술 스택

•

Language With Appliocation:

◦

Java, JSP, HTML, CSS, JavaScript

•

DBMS : MySQL

•

Java Version : Java 17

•

IDE : Intellij IDEA Ultimate Edition (2023.2)

•

Framework : bootstrap 5.0.2

프로젝트 기능

•

게시글 작성

•

게시판 기본 목록 조회

•

특정 사용자 게시글 조회

•

게시글 수정

•

게시글 삭제

도메인 생성

•

Board

package com.board.model;

import lombok.AllArgsConstructor;
import lombok.Data;

import java.time.LocalDateTime;

@Data
@AllArgsConstructor
public class Board {
    private int id;
    private String title;
    private String content;
    private String author;
    private String img;
    private LocalDateTime created_at;
    private LocalDateTime updated_at;
}
Java
복사

DB 연결

package com.board.util;

import org.apache.tomcat.dbcp.dbcp2.BasicDataSource;

import java.sql.Connection;
import java.sql.SQLException;

public class ConnectionPool {
    public static class DBPool {
        private static final String JDBC_DRIVER = "com.mysql.cj.jdbc.Driver";
        private static final String DB_URL = "jdbc:mysql://localhost:3306/news_db";
        private static final String DB_USER = "root";
        private static final String DB_PASSWORD = "Dmove1122!";

        // 아파치에 DBCP (DataBase Connection Pooling) 라이브러리에서 제공하는 클래스를 사용
        static final BasicDataSource dbcp = new BasicDataSource();
        static {
            dbcp.setDriverClassName(JDBC_DRIVER);
            dbcp.setUrl(DB_URL);
            dbcp.setUsername(DB_USER);
            dbcp.setPassword(DB_PASSWORD);

            // 연결 수 관리
            dbcp.setInitialSize(10);        // 초기 연결 수 10개 설정
            dbcp.setMaxTotal(50);           // 최대 연결 수 50개 설정
            dbcp.setMaxIdle(20);            // 최대 유휴 연결 수 20개 설정
            dbcp.setMinIdle(5);             // 최소 유휴 연결 수 5개 설정
        }

        public static Connection getDBPool() throws SQLException {
            return dbcp.getConnection();
        }
    }
}
Java
복사

컨트롤러

•

BoardController

package com.board.controller;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

public interface BoardController {
    void process(HttpServletRequest req, HttpServletResponse res) throws ServletException, IOException;
}
Java
복사

•

ListController

package com.board.controller;

import com.board.model.Board;
import com.board.service.BoardService;
import com.board.service.BoardServiceImpl;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.List;

public class ListController implements BoardController {
    BoardService bs = new BoardServiceImpl();
    @Override
    public void process(HttpServletRequest req, HttpServletResponse res) throws ServletException, IOException {
        try {
            String action = req.getParameter("action");
            // 글 추가
            if (action != null && action.equals("addWrite")) {
                System.out.println("글 추가");
                bs.addWrite(req);

                // 중복 응답 방지
                res.sendRedirect(req.getRequestURI());
                return;
            } else if (action != null && action.equals("deleteWrite")) {
                System.out.println("글 삭제");
                bs.deleteWrite(req);
                res.sendRedirect(req.getRequestURI());
                return;
            } else {
                // 작성글 전체 보기
                System.out.println("글 전체 보기");
                List<Board> boardList = bs.getAll();
                req.setAttribute("boardList", boardList);
            }

        } catch (Exception e) {
            e.printStackTrace();
            req.setAttribute("error", e.getMessage());
        }

        String view = "/WEB-INF/views/BoardList.jsp";
        req.getRequestDispatcher(view).forward(req, res);
    }
}
Java
복사

•

ViewController

package com.board.controller;

import com.board.model.Board;
import com.board.service.BoardService;
import com.board.service.BoardServiceImpl;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

public class ViewController implements BoardController {
    BoardService bs = new BoardServiceImpl();
    @Override
    public void process(HttpServletRequest req, HttpServletResponse res) throws IOException, ServletException {
        // 특정 작성글 보기(우선적으로) + 글 수정 로직 구현
        try {
            String action = req.getParameter("action");
            if (action != null && action.equals("modifyWrite")) {
                bs.modifyWrite(req);
                res.sendRedirect("/board/boardView?id=" + req.getParameter("id"));
                return;
            } else {
                Board board = bs.getWrite(req);
                req.setAttribute("board", board);
            }
        } catch (Exception e) {
            e.printStackTrace();
            res.sendRedirect("/board/boardList");
            return;
        }
        String view = "/WEB-INF/views/boardView.jsp";
        req.getRequestDispatcher(view).forward(req, res);
    }
}
Java
복사

•

BoardServlet

package com.board.controller;

import javax.servlet.ServletException;
import javax.servlet.annotation.MultipartConfig;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;

@WebServlet("/board/*")
@MultipartConfig(maxFileSize = 1024 * 1024 * 2, location = "/Users/haminsung/Documents/testimage")
public class BoardServlet extends HttpServlet {

    private Map<String, BoardController> controllerMap = new HashMap<>();

    // 페이지 추가
    public BoardServlet() {
        controllerMap.put("/board/boardList", new ListController());
        controllerMap.put("/board/boardView", new ViewController());
    }

    @Override
    protected void service(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        req.setCharacterEncoding("UTF-8");
        String requestURI = req.getRequestURI();
        BoardController controller = controllerMap.get(requestURI);
        if (controller == null);
        controller.process(req, resp);
    }
}
Java
복사

서비스

•

BoardService

package com.board.service;

import com.board.model.Board;

import javax.servlet.http.HttpServletRequest;
import java.util.List;

// 서비스
public interface BoardService {
    // 작성글 추가
    void addWrite(HttpServletRequest req) throws Exception;

    // 작성글 전체 보기
    List<Board> getAll() throws Exception;

    // 특정 작성글 보기
    Board getWrite(HttpServletRequest req) throws Exception;

    // 작성글 삭제
    void deleteWrite(HttpServletRequest req) throws Exception;

    // 작성글 수정
    void modifyWrite(HttpServletRequest req) throws Exception;
}
Java
복사

•

BoardServiceImpl

package com.board.service;

import com.board.dao.BoardDAO;
import com.board.dao.BoardDAOImpl;
import com.board.model.Board;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.Part;
import java.util.List;

public class BoardServiceImpl implements BoardService {
    BoardDAO boardDAO = new BoardDAOImpl();
    @Override
    public void addWrite(HttpServletRequest req) throws Exception {
        // 제목, 내용, 작성자, 이미지
        String title = req.getParameter("title");
        String content = req.getParameter("content");
        String author = req.getParameter("author");
        System.out.println("제목과 내용, 작성자 : " + title + ", " + content + ", " + author);

        // img 가져오기
        Part part = req.getPart("img");
        String header = part.getHeader("content-disposition");
        System.out.println(header);
        int start = header.indexOf("filename=");
        String img = header.substring(start + 10, header.length() - 1);

        // img 저장
        if (img != null && !img.isEmpty()) {
            part.write(img);
        }

        // Board 객체 생성
        Board board = new Board(title, content, author, img);

        // DAO에 요청하여 DB에 Insert하기
        boardDAO.addWrite(board);
    }

    @Override
    public List<Board> getAll() throws Exception {
        return boardDAO.getAll();
    }

    @Override
    public Board getWrite(HttpServletRequest req) throws Exception {
        int id = Integer.parseInt(req.getParameter("id"));
        return boardDAO.getWrite(id);
    }

    @Override
    public void deleteWrite(HttpServletRequest req) throws Exception {
        int id = Integer.parseInt(req.getParameter("id"));
        boardDAO.deleteWrite(id);
    }

    @Override
    public void modifyWrite(HttpServletRequest req) throws Exception {
        // id값 가져오기
        int id = Integer.parseInt(req.getParameter("id"));
        Board board = boardDAO.getWrite(id);

        // 요청 파라미터를 가지고 Board 객체 수정
        String title = req.getParameter("title");
        String content = req.getParameter("content");

        board.setTitle(title);
        board.setContent(content);

        // img 가져오기
        Part part = req.getPart("img");
        String header = part.getHeader("content-disposition");
        System.out.println(header);
        int start = header.indexOf("filename=");
        String img = header.substring(start + 10, header.length() - 1);

        // img 저장
        if (img != null && !img.isEmpty()) {
            part.write(img);
            board.setImg(img);
        }

        // DAO에 접근
        boardDAO.modifyWrite(board);
    }
}
Java
복사

DAO

•

BoardDAO

package com.board.dao;

import com.board.model.Board;

import javax.servlet.http.HttpServletRequest;
import java.sql.SQLException;
import java.util.List;

// DAO (Data Access Object)
public interface BoardDAO {
    // 작성글 추가
    void addWrite(Board board) throws Exception;

    // 작성글 전체 보기
    List<Board> getAll() throws Exception;

    // 특정 작성글 보기
    Board getWrite(int id) throws Exception;

    // 특정 작성글 삭제
    void deleteWrite(int id) throws Exception;

    // 특정 작성글 수정
    void modifyWrite(Board board) throws SQLException;
}
Java
복사

•

BoardDAOImpl

package com.board.dao;

import com.board.model.Board;
import com.board.util.ConnectionPool;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.time.LocalDateTime;
import java.util.ArrayList;
import java.util.List;

public class BoardDAOImpl implements BoardDAO {
    private static final String[] info = {"title", "content", "author", "img", "created_at", "updated_at"};
    @Override
    public void addWrite(Board board) throws Exception {
        String sql = "INSERT INTO boards (title, content, author, img) VALUES (?, ?, ?, ?)";
        try (
            Connection conn = ConnectionPool.DBPool.getDBPool();
            PreparedStatement pstmt = conn.prepareStatement(sql);
        ) {
            pstmt.setString(1, board.getTitle());
            pstmt.setString(2, board.getContent());
            pstmt.setString(3, board.getAuthor());
            pstmt.setString(4, board.getImg());
            pstmt.executeUpdate();
        }
    }

    @Override
    public List<Board> getAll() throws Exception {
        String sql = "SELECT * FROM boards";
        List<Board> boardList = new ArrayList<>();
        try (
            Connection conn = ConnectionPool.DBPool.getDBPool();
            PreparedStatement pstmt = conn.prepareStatement(sql);
            ResultSet rs = pstmt.executeQuery();
        ) {
            while (rs.next()) {
                int id = rs.getInt("id");
                String title = rs.getString(info[0]);
                String content = rs.getString(info[1]);
                String author = rs.getString(info[2]);
                String img = rs.getString(info[3]);
                String created_at = rs.getString(info[4]);
                Board boards = new Board(id, title, content, author, img, created_at);
                boardList.add(boards);
            }
        }
        return boardList;
    }

    @Override
    public Board getWrite(int id) throws Exception {
        String sql = "SELECT * FROM boards WHERE id = ?";
        Board board = null;
        try (
            Connection conn = ConnectionPool.DBPool.getDBPool();
            PreparedStatement pstmt = conn.prepareStatement(sql);
        ) {
            pstmt.setInt(1, id);
            ResultSet rs = pstmt.executeQuery();
            if (rs.next()) {
                String title = rs.getString(info[0]);
                String content = rs.getString(info[1]);
                String author = rs.getString(info[2]);
                String img = rs.getString(info[3]);
                String created_at = rs.getString(info[4]);
                String updated_at = rs.getString(info[5]);
                board = new Board(id, title, content, author, img, created_at, updated_at);
            }
        }
        return board;
    }

    @Override
    public void deleteWrite(int id) throws Exception {
        String sql = "DELETE FROM boards WHERE id = ?";
        try (
            Connection conn = ConnectionPool.DBPool.getDBPool();
            PreparedStatement pstmt = conn.prepareStatement(sql);
        ) {
            pstmt.setInt(1, id);
            pstmt.executeUpdate();
        }
    }

    @Override
    public void modifyWrite(Board board) throws SQLException {
        String sql = "UPDATE boards SET title = ?, content = ?, author = ?, img = ?, updated_at = NOW()  WHERE id = ?";
        try (
            Connection conn = ConnectionPool.DBPool.getDBPool();
            PreparedStatement pstmt = conn.prepareStatement(sql);
        ) {
            pstmt.setString(1, board.getTitle());
            pstmt.setString(2, board.getContent());
            pstmt.setString(3, board.getAuthor());
            pstmt.setString(4, board.getImg());
//            pstmt.setString(5, board.getUpdated_at());
            pstmt.setInt(5, board.getId());
            pstmt.executeUpdate();
        }
    }
}
Java
복사

JSP

•

BoardList.jsp

<%--
  Created by IntelliJ IDEA.
  User: haminsung
  Date: 8/8/24
  Time: 9:35 AM
  To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
    <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.0.2/dist/css/bootstrap.min.css" rel="stylesheet"
          integrity="sha384-EVSTQN3/azprG1Anm3QDgpJLIm9Nao0Yz1ztcQTwFspd3yD65VohhpuuCOmLASjC" crossorigin="anonymous">
    <script src="https://cdn.jsdelivr.net/npm/bootstrap@5.0.2/dist/js/bootstrap.bundle.min.js"
            integrity="sha384-MrcW6ZMFYlzcLA8Nl+NtUVF0sA7MsXsP1UyJoMp4YLEuNSfAP+JcXn/tWtIaxVXM"
            crossorigin="anonymous"></script>

    <title>미니 게시판</title>
    <link href="${pageContext.request.contextPath}/style.css" rel="stylesheet">
    <link href="${pageContext.request.contextPath}/starter-template.css" rel="stylesheet">
    <link href="${pageContext.request.contextPath}/custom.css" rel="stylesheet">
</head>
<body>
<nav th:fragment="fragment-nav" class="navbar navbar-expand-md navbar-dark bg-dark fixed-top">
    <a class="navbar-brand">Java JSP 미니 게시판</a>
    <div class="collapse navbar-collapse" id="navbarsExampleDefault_admin">
        <ul class="navbar-nav mr-auto">
            <li class="nav-item active">
                <a class="nav-link" href="/board/boardList">게시판 목록</a>
            </li>
        </ul>
    </div>
</nav>
</br></br>
<div class="container w-75 mt-5 mx-auto">
    <h2 class="text-center mb-4">게시판 목록</h2>
    <hr/>
    <c:choose>
        <c:when test="${not empty boardList}">
            <ul class="list-group mb-4">
                <c:forEach var="board" items="${boardList}" varStatus="b">
                    <li class="list-group-item list-group-item-action
                        d-flex justify-content-between
                        align-items-center">
                        <a href="/board/boardView?id=${board.getId()}">[${b.count}] ${board.getTitle()}</a>
                        <div>
                            <span>${board.getCreated_at()}</span>
                            <!-- x 버튼에 url 담아줌 -->
                            <a href="/board/boardList?action=deleteWrite&id=${board.getId()}">
                                <span class="badge bg-secondary"> &times; </span>
                            </a>
                        </div>
                    </li>
                </c:forEach>
            </ul>
        </c:when>
        <c:otherwise>
            <div class="no-news-msg">작성된 글이 없습니다.</div>
        </c:otherwise>
    </c:choose>

    <c:if test="${error != null}">
        <div class="alert alert-danger alert-dismissible fade show mt-3" role="alert">
            에러 발생 : ${error}
            <button class="btn-close" data-bs-dismiss="alert"></button>
        </div>
    </c:if>

    <button class="btn btn-outline-success collapse-button"
            data-bs-toggle="collapse" data-bs-target="#addForm"
            aria-expanded="false" aria-controls="addForm">
        게시글 작성
    </button>

    <div class="collapse" id="addForm">
        <br/>
        <div class="card card-body">
            <form action="/board/boardList?action=addWrite"
                  method="post" enctype="multipart/form-data">
                <label for="title" class="form-label">제목</label>
                <input id="title" name="title" class="form-control" required/>

                <br/>
                <label for="content" class="form-label">글 내용</label>
                <textarea id="content" rows="5" cols="50" name="content" class="form-control" required></textarea>

                <br/>
                <label for="author" class="form-label">작성자</label>
                <input id="author" name="author" class="form-control" required/>

                <br/>
                <label for="img" class="form-label">이미지</label>
                <input id="img" type="file" name="img" class="form-control" required/>

                <button class="btn btn-success mt-3">저장</button>
            </form>
        </div>
    </div>
</div>
</body>
</html>
HTML
복사

•

BoardView.jsp

<%--
  Created by IntelliJ IDEA.
  User: haminsung
  Date: 8/8/24
  Time: 9:35 AM
  To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
    <title>글 보기</title>

    <!-- Bootstrap CSS -->
    <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.0.2/dist/css/bootstrap.min.css" rel="stylesheet"
          integrity="sha384-EVSTQN3/azprG1Anm3QDgpJLIm9Nao0Yz1ztcQTwFspd3yD65VohhpuuCOmLASjC" crossorigin="anonymous">
    <script src="https://cdn.jsdelivr.net/npm/bootstrap@5.0.2/dist/js/bootstrap.bundle.min.js"
            integrity="sha384-MrcW6ZMFYlzcLA8Nl+NtUVF0sA7MsXsP1UyJoMp4YLEuNSfAP+JcXn/tWtIaxVXM"
            crossorigin="anonymous"></script>

    <!-- Custom styles for this template -->
    <link href="${pageContext.request.contextPath}/starter-template.css" rel="stylesheet">
    <link href="${pageContext.request.contextPath}/custom.css" rel="stylesheet">

    <script>
        function updateAlarm() {
            alert("수정되었습니다.");
        }
    </script>

</head>
<body>
    <nav fragment="fragment-nav" class="navbar navbar-expand-md navbar-dark bg-dark fixed-top">
        <a class="navbar-brand">Java JSP 미니 게시판</a>
        <div class="collapse navbar-collapse" id="navbarsExampleDefault_admin">
            <ul class="navbar-nav mr-auto">
                <li class="nav-item active">
                    <a class="nav-link" href="/board/boardList">게시판 목록</a>
                </li>
            </ul>
        </div>

        <div class="collapse navbar-collapse" id="navbarsExampleDefault">
        </div>
    </nav>

    <div class="container mt-5 mx-auto">
        <table class="table table-striped" style="text-align: center; border: 1px solid #dddddd;">
            <thead>
            <tr>
                <th colspan="2" style="background-color: #eeeeee;
                            text-align: center;"><h3>${board.getAuthor()} 의 게시글</h3></th>
            </tr>
            </thead>
            <tbody>
            <tr>
                <td>글 제목</td>
                <td>${board.getTitle()}</td>
            </tr>
            <tr>
                <td>작성자</td>
                <td>${board.getAuthor()}</td>
            </tr>
            <tr>
                <td>작성일자</td>
                <td>${board.getCreated_at()}</td>
            </tr>
            <tr>
                <td>수정일자</td>
                <td>${board.getUpdated_at()}</td>
            </tr>
            <tr>
                <td>내용</td>
                <td>${board.getContent()}</td>
            </tr>
            </tbody>
        </table>

        <br/>
        <h5>첨부 이미지</h5>
        <div class="card mx-auto">
            <img src="/img/${board.getImg()}" alt="게시글 이미지"/>
        </div>

        <br/>
        <a href="javascript:history.back()" class="btn btn-dark">메인으로</a>

        <!-- 수정하기 버튼 만들어서 토글 형태로 수정 양식 나타나게 하기 -->
        <button class="btn btn-primary"
            data-bs-toggle="collapse" data-bs-target="#modifyForm"
            aria-expanded="false" aria-controls="modifyForm">
            글 수정
        </button>
        <form action="/board/boardList?action=deleteWrite" method="post"
              class="d-inline" onsubmit="return confirm('삭제하시겠습니까?')">
            <input type="hidden" name="id" value="${board.getId()}"/>
            <button class="btn btn-danger">삭제</button>
        </form>
    </div>

    <div class="collapse" id="modifyForm">
        <br/>
        <div class="card card-body">
            <form action="/board/boardView?action=modifyWrite"
                  method="post" enctype="multipart/form-data" >

                <input type="hidden" name="id" value="${board.getId()}"/>
                <label for="title" class="form-label">제목</label>
                <input id="title" name="title" class="form-control" value="${board.getTitle()}" required/>

                <br/>
                <label for="content" class="form-label">글 내용</label>
                <textarea id="content" rows="5" cols="50" name="content" class="form-control"
                          value="${board.getContent()}" required></textarea>

                <br/>
                <label for="author" class="form-label">작성자</label>
                <input id="author" name="author" class="form-control" value="${board.getAuthor()}" required/>

                <br/>
                <label for="img" class="form-label">이미지</label>
                <input id="img" type="file" name="img" class="form-control"/>
                <button class="btn btn-success mt-3" onclick="updateAlarm()">수정하기</button>
            </form>
        </div>
    </div>
</body>
</html>
Java
복사

CSS

•

custom.css

@import url(http://fonts.googleapis.com/earlyaccess/nanumgothic.css);
@import url(http://fonts.googleapis.com/earlyaccess/hanna.css);

*  {
    font-family: 'Nanum Gothic';
}

h1 {
  font-family: Hanna;
}
CSS
복사

•

starter-template.css

body {
    padding-top: 5rem;
  }
  .starter-template {
    padding: 3rem 1.5rem;
    text-align: center;
  }
CSS
복사

•

style.css

@charset "UTF-8";

.no-news-msg {
    background-color: lightyellow;
    color: black;
    padding: 10px;
    border: 1px solid gray;
    border-radius: 5px;
    text-align: center;
    margin-top: 20px;
}
CSS
복사
